Get that mapping wrong, and the consequences show up months later: query cycles that drag on, SDTM reprogramming that eats up your database lock timeline, and FDA or EMA reviewers asking questions your data structure can't easily answer. A well-cited CDM analysis of 20 Phase III studies found an average query rate of 3.9% across nearly 50 million data points, with rates climbing as high as 7.3% in oncology trials — a workload that good design can meaningfully reduce (Stokman et al., 2021).
This article walks through the core principles, structural decisions, and standards that separate a regulatory-ready clinical trial database from one that creates problems at submission time.
Key Takeaways
- Design decisions made before first-patient-in set query rates, lock speed, and submission readiness
- Build CDISC/SDTM alignment, GxP compliance, and audit trails in from day one—not after go-live
- Normalized structures and strong edit checks cut rework when protocols amend mid-study
- Early planning across data management, biostatistics, and sites prevents the most common design failures
What Is a Clinical Trial Database?
A clinical trial database is the structured, validated electronic system that captures, stores, and organizes data collected through CRFs or eCRFs during a study. It sits at the center of the trial, connecting protocol requirements, the EDC system used at sites, and the eventual regulatory submission package.
The database is not the same as the broader Clinical Data Management (CDM) ecosystem. The database is the data repository itself: tables, fields, and validation rules. CDM is the full set of processes around it:
- Data review plans
- Discrepancy management
- Coding
- Lock procedures
Per the peer-reviewed CDM overview, after stakeholder approval the locked database supplies clean data for analysis and archiving (PMC, 2012). Getting there depends entirely on how the database was built.
Core Principles of Regulatory-Ready Database Design
Start With the Protocol, Not the CRF
Design begins with a deep read of the protocol and statistical analysis plan (SAP), not with building forms. Every data field should trace back to a study endpoint or analysis requirement. Skip this step, and you'll end up collecting data you don't need while missing data you do.

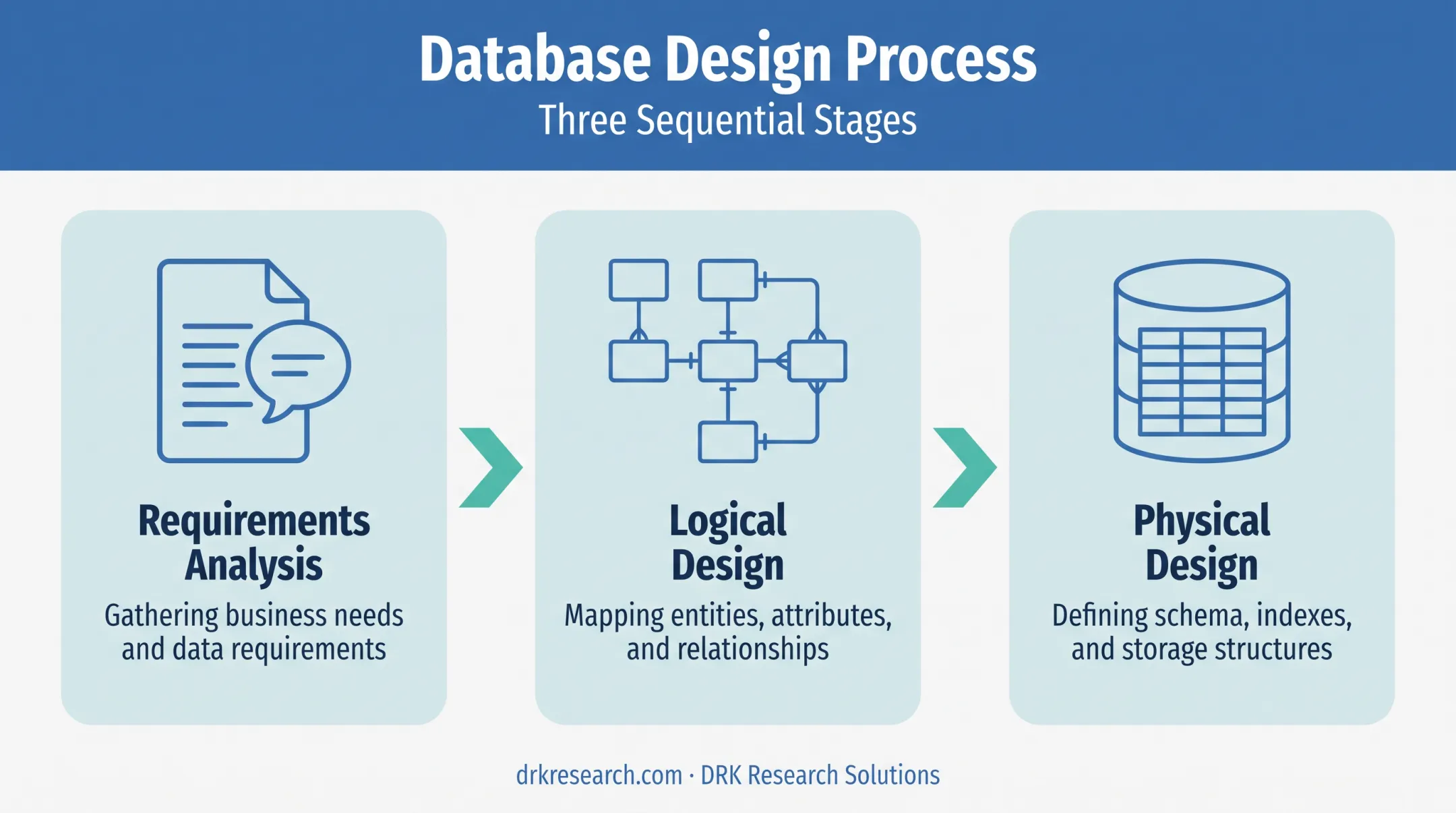

Database builds typically follow three stages:
- Requirements analysis: interview data producers and users, document what needs to be collected and why
- Logical design: build the conceptual model: entities, relationships, keys, and standards mappings
- Physical design: implement tables, indexes, and performance controls in the actual system
Design for SDTM From Day One
Annotating variables to SDTMIG conventions during the logical design phase, rather than after data collection ends, saves significant downstream programming time. Retrofitting SDTM mapping onto an unstructured database is one of the most common sources of late-stage rework.

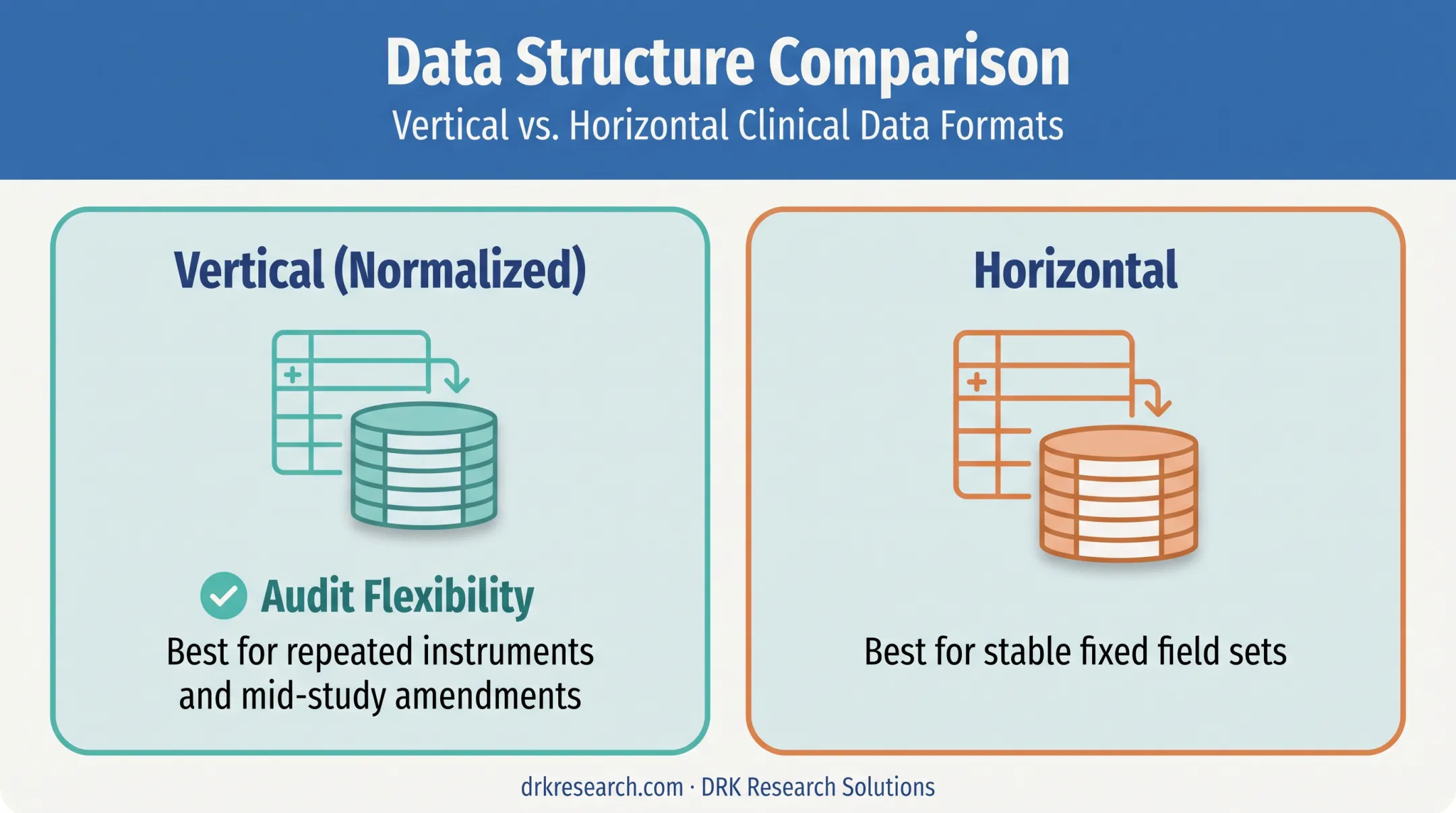

Vertical vs. Horizontal Structuring
Structure choice determines how easily the database absorbs change:
| Structure | How it handles change | Best for |
|---|---|---|
| Vertical (normalized) | New question = new row | Studies with repeated or evolving instruments, mid-study amendments |
| Horizontal | New question = new column/table change | Stable, fixed field sets with minimal expected change |
A vertical model generally offers more flexibility for regulatory audits and protocol amendments, since adding data points doesn't require restructuring the database (Applied Clinical Trials, 2012).
Build Edit Checks Into the Foundation
Edit checks and validation attributes catch invalid entries (out-of-range values, illogical dates, missing conditional fields) before they become queries.

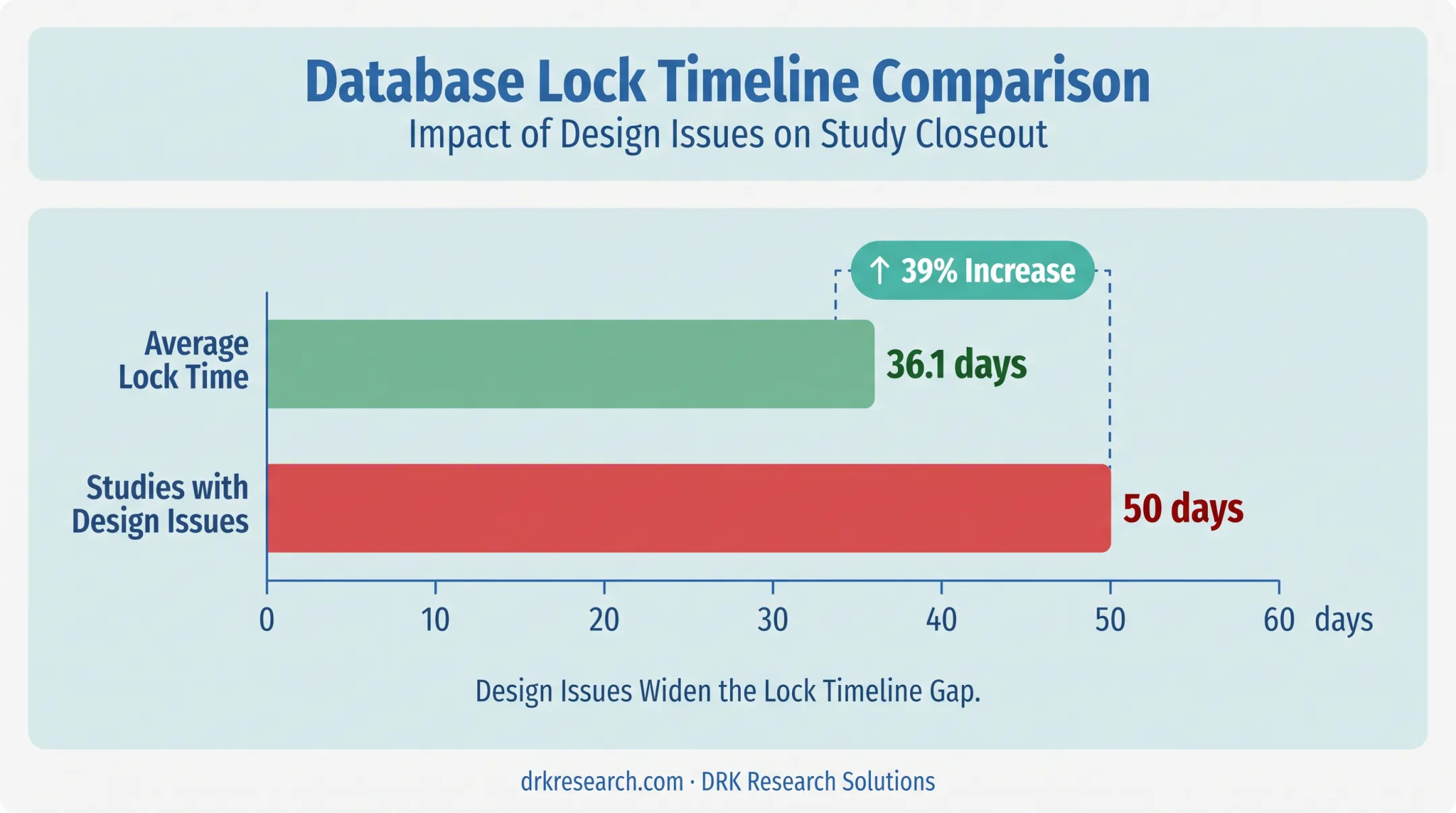

Tufts CSDD data shows the stakes: average time from last patient last visit to database lock was 36.1 days in 2017, but studies where database-design issues surfaced ran 50 days, about 39% longer than average (Applied Clinical Trials, 2018). Design decisions made early directly affect lock speed later.
Building Blocks: CRF Design, Coding, and Data Standards
CRF Design and Coding That Mirror the Protocol
Case report forms should reflect protocol logic in the order site staff actually experience it during a visit. Confusing form layouts are a leading cause of entry errors, which then cascade into queries.
Layout is only half the job. Coding schemas need the same discipline:
- Consistent ID numbering across forms and versions
- Leaving space in codelists for future response options
- Clear separation between structured fields (dropdowns, checkboxes) and unstructured free text
- Documented annotation conventions applied consistently study-wide
Why Standards Aren't Optional
CDISC's SDTM organizes data for collection, management, analysis, and reporting, and is required for FDA and PMDA submissions (CDISC, 2024). FDA's Study Data Technical Conformance Guide adds specific, checkable requirements:
- No imputation within SDTM
- ISO 8601 date formats
- Consistent variable naming
- No mixed standard versions within a study
- Exact controlled-terminology spelling
MedDRA coding handles safety data separately from the SDTM model. It covers adverse event documentation and safety monitoring throughout the product lifecycle. 21 CFR Part 11 also requires validated systems, secure time-stamped audit trails, and retrievable records for the life of the study.
Planning for Non-CRF Data
Labs, imaging, and patient-reported outcomes rarely arrive in the same format as CRF data. Database design needs a reconciliation plan from the outset: matching rules, timing expectations, and discrepancy workflows. Improvising integration after data starts flowing creates avoidable rework.

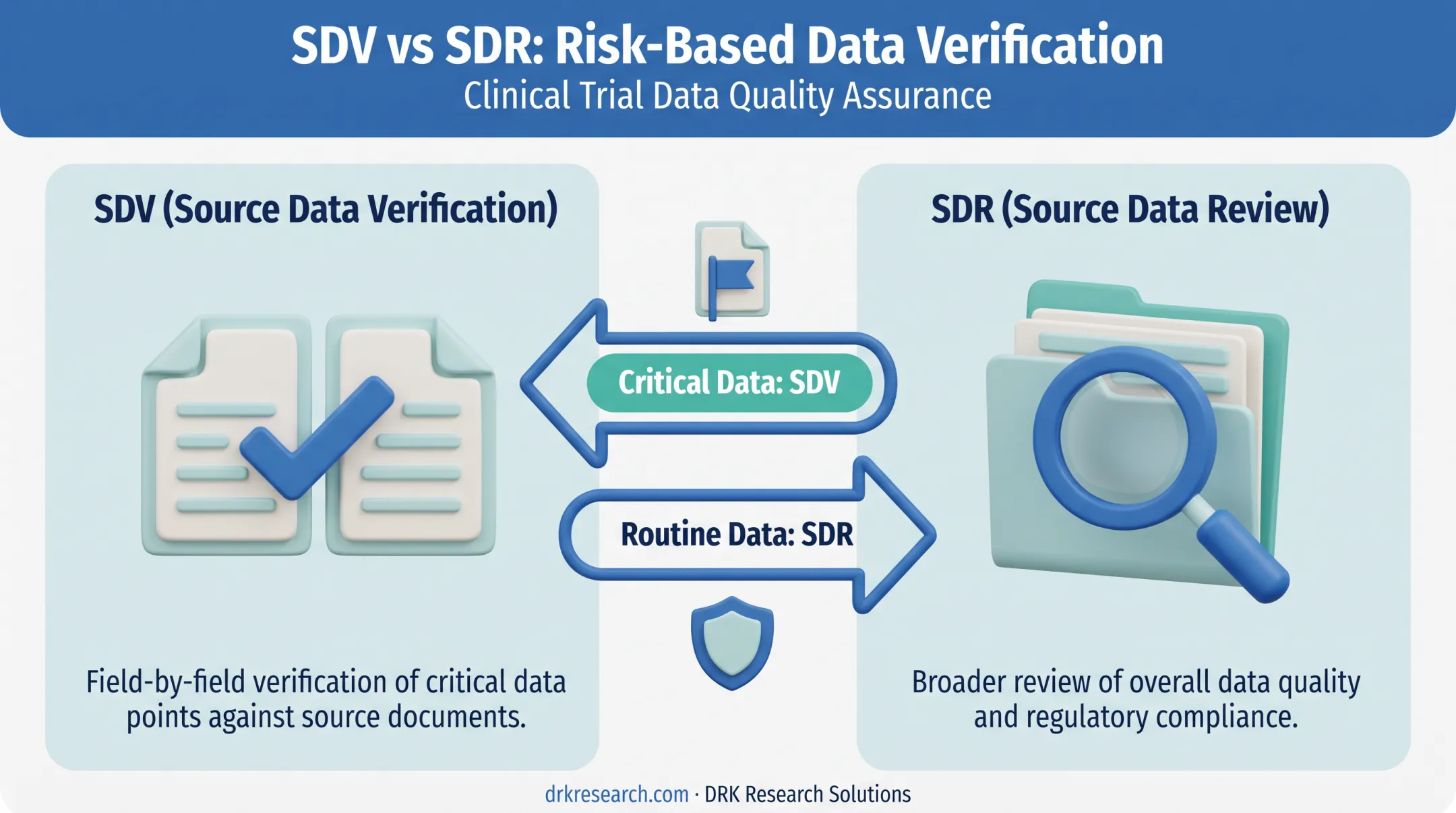

SDV vs. SDR: Different Jobs
- SDV (Source Data Verification): Compares entered CRF data against source documents, field by field
- SDR (Source Data Review): A broader review of source quality, protocol compliance, and GCP adherence, not a transcription check
TransCelerate's risk-based monitoring framework recommends targeting review effort by risk rather than defaulting to 100% SDV (TransCelerate). Database design supports both approaches by flagging critical data points for SDV while structuring source documentation review for SDR.
Ensuring Data Quality, Traceability, and Compliance
Audit trails are not optional add-ons. FDA inspectors expect a database to log every change (who made it, when, and why) as a built-in behavior, not a retrofitted feature.
Risk-based quality management (RBQM) works best when built into the design phase:
- Edit checks targeted at high-risk data points, not applied uniformly
- Role-based access controls set during build, not adjusted later
- Data Review Plans that specify discrepancy escalation paths in advance
Database lock is the final checkpoint where design decisions get validated. The process typically includes final data review, issue resolution, a QA audit, and freeze/lock documentation before conversion to SDTM or sponsor standards.
There is no single regulatory definition distinguishing "soft lock" from "hard lock." These are sponsor-specific SOP terms, so confirm the definition your CRO or sponsor uses before assuming a shared meaning.
Common Pitfalls That Compromise Regulatory Readiness
- Siloed planning. When data management, biostatistics, and site teams work in isolation, gaps show up late. A single traceability matrix, connecting protocol requirements through CRF fields, edit checks, SDTM variables, and analysis outputs, keeps everyone aligned.
- Skipping SDTM-friendly design. FDA's conformance guide calls for consistent formats and functioning define.xml files from the start. Deciding standards and terminology after the database is built usually means costly reprogramming before submission.
- Underestimating multi-regional complexity. Different authorities have different expectations. A common core data model with a documented, authority-specific conformance check works better than building separate databases per region.
How DRK Research Solutions Supports Regulatory-Ready Database Design
DRK Research Solutions embeds compliance into clinical database design from day one. During study setup, teams lay the groundwork that determines how smoothly a study runs later:
- Protocol review and eCRF programming with validation
- Edit-check and role-based access configuration
- Annotated CRF and Master CRF Casebook generation
- Dictionary setup for MedDRA and WHODD
During study conduct, DRK reconciles external sources such as central labs, patient-reported outcomes, imaging, and pharmacokinetics against the trial database. Discrepancies are resolved early so they do not compound near database lock.
At closeout, DRK completes:
- Final database review and QA audit
- Freeze and lock documentation
- Conversion to SDTM or sponsor-specific standards
With operations spanning the United States, Switzerland, the UK, and emerging markets across Asia, Africa, and the Middle East, DRK's cross-functional teams align data management, clinical operations, and regulatory requirements across diverse environments. That includes trials serving underserved populations, where local infrastructure adds complexity to standard database planning.
Frequently Asked Questions
What is a clinical trial database?
A clinical trial database is a structured, validated electronic system that captures, stores, and organizes trial data for statistical analysis and regulatory submission.
What is the difference between SDV and SDR?
SDV verifies entered CRF data against source documents field by field. SDR is a broader review of source data quality, protocol compliance, and process integrity, commonly used in risk-based monitoring approaches.
Why is database design important for regulatory submissions?
Design determines whether collected data can be efficiently mapped to SDTM standards and whether the audit trail and validation history will hold up under regulatory inspection.
What data standards should a clinical trial database follow?
CDISC's SDTM standard is required for FDA and PMDA submissions, alongside MedDRA for safety coding and 21 CFR Part 11 for electronic record integrity.
When should database design begin in a clinical trial?
Design should start during protocol development, well before the first subject visit, so data fields align with study endpoints from the outset.
What happens if a clinical trial database isn't designed properly?
Poor design typically leads to delayed database lock, higher query rates, costly SDTM reprogramming, and increased risk during regulatory submission review.
